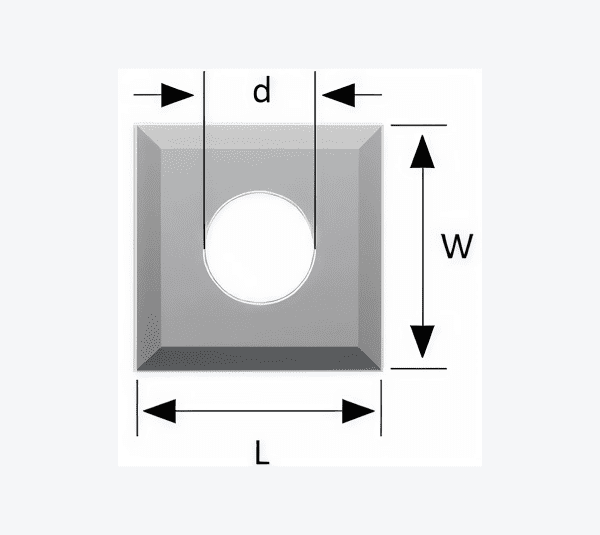

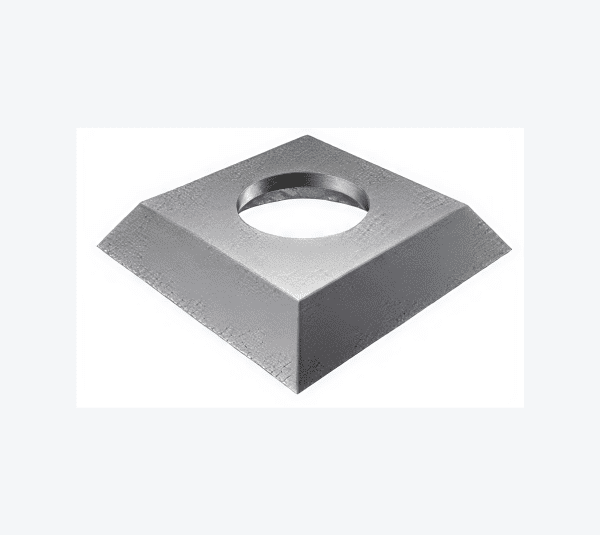

AWB Za skobeljne glave
RAVEN Z OSTRIM ROBOM
| L
mm |
W
mm |
T
mm |
M07FCR | M04FUCR | M10S | M04CR | M15L | M10W | |
| 10,5 | 10,5 | 1,5 | 35° | 106682 | 040343 | ||||
| 14,0 | 14,0 | 2,0 | 30° | 013273 | 013260 | 014028 | 102558 | 013771 | 140094 |
| 14,0 | 14,0 | 2,0 | 37° | 104900 | |||||
| 14,3 | 14,3 | 2,5 | 35° | 013329 | 106683 | ||||
| 14,6 | 14,6 | 2,5 | 30° | 013314 | 106684 | ||||
| 15,0 | 15,0 | 2,5 | 30° | 013315 | 106685 | 152429 | |||
| 15,0 | 15,0 | 2,5 | 37° | 10462 |
RAVEN Z ZAOKROŽENIM ROBOM
| L
mm |
W
mm |
T
mm |
M07FCR | M10S | |
| 14,0 | 14,0 | 2,0 | 30° | 013276 | 104117 |
| 14,6 | 14,6 | 2,5 | 30° | 013316 | |
| 15,0 | 15,0 | 2,5 | 30° | 104118 | |
| 15,0 | 15,0 | 2,5 | 37° | 109384 |
ZA SISTEM LEDINEK
| L
mm |
W
mm |
T
mm |
M10S | |
| 14,3 | 14,3 | 2,5 | 35° | 053589 |
| 14,3 | 14,3 | 2,5 | 35° | 053590 |
| 14,3 | 14,3 | 2,5 | 35° | 106861 |
| L
mm |
W
mm |
T
mm |
M10S | T20L | M10W | |
| 21,0 | 21,0 | 5,5 | 40° | 022695 | 142724 | 140092 |
