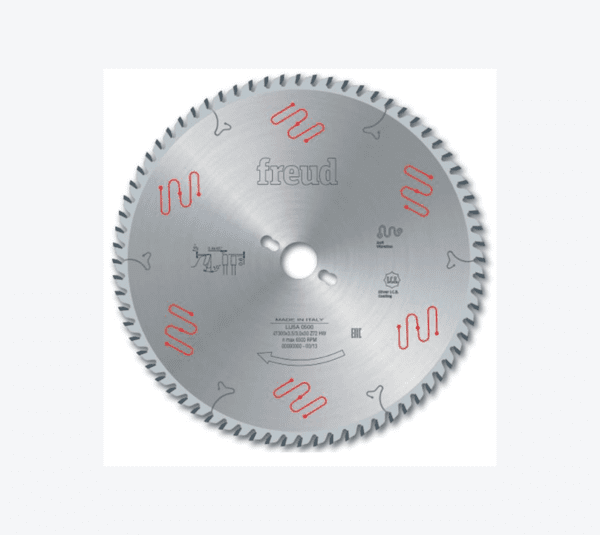

LU5A Krožne žage za rezanje barvnih kovin
STROJI:
Dvoglave rezalne naprave in CNC rezalne enote.
MATERIALI:
Aluminij, baker in medenina.
NAMEN UPORABE:
Rezanje aluminija in drugih barvnih kovin.
TEHNIČNE INFORMACIJE:
Primerne za rezanje trdih izdelkov s premerom med 2 in 10 mm.
| D
mm |
B
mm |
b
mm |
d
mm |
Z
|
NL | ŠTEVILKA ARTIKLA
|
| 200 | 2,8 | 2,2 | 30 | 54 | LU5A 0100 | |
| 250 | 3,5 | 3,0 | 30 | 60 | FT02 | LU5A 0200 |
| 250 | 3,5 | 3,0 | 32 | 60 | 2/11/63 | LU5A 0300 |
| 300 | 3,5 | 3,0 | 30 | 72 | FT02 | LU5A 0500 |
| 300 | 3,5 | 3,0 | 32 | 72 | 2/11/63 | LU5A 0600 |
| 330 | 3,5 | 3,0 | 30 | 84 | FT02 | LU5A 0800 |
| 330 | 3,5 | 3,0 | 32 | 84 | 2/11/63 | LU5A 0900 |
| 350 | 3,5 | 3,0 | 30 | 84 | FT02 | LU5A 1000 |
| 350 | 3,5 | 3,0 | 32 | 84 | 2/11/63 | LU5A 1100 |
| 350 | 3,5 | 3,0 | 40 | 84 | 2/9/55 + 4/12/64 | LU5A 1200 |
| 370 | 3,5 | 3,0 | 30 | 90 | LU5A 1300 | |
| 370 | 3,5 | 3,0 | 50 | 90 | 4/15/80 | LU5A 1400 |
| 380 | 3,5 | 3,0 | 32 | 96 | 2/11/63 | LU5A 1500 |
| 400 | 3,5 | 3,0 | 30 | 96 | 2/11/63 | LU5A 1600 |
| 400 | 3,5 | 3,0 | 32 | 96 | 2/11/63 | LU5A 1700 |
| 400 | 3,5 | 3,0 | 40 | 96 | 2/12/64 + 2/15/80 | LU5A 1800 |
| 400 | 3,5 | 3,0 | 50 | 96 | 4/15/80 | LU5A 1900 |
| 420 | 3,5 | 3,0 | 30 | 96 | 2/11/70 | LU5A 2000 |
| 450 | 4,0 | 3,2 | 30 | 108 | 2/11/63 | LU5A 2100 |
| 450 | 4,0 | 3,2 | 32 | 108 | 2/11/63 | LU5A 2200 |
| 450 | 4,0 | 3,2 | 40 | 108 | 2/12/64 + 2/15/80 | LU5A 2300 |
| 450 | 4,0 | 3,2 | 50 | 108 | 4/15/80 | LU5A 2400 |
| 500 | 4,0 | 3,2 | 30 | 120 | 2/10,5/70 | LU5A 2500 |
| 500 | 4,0 | 3,2 | 32 | 120 | 2/11/63 | LU5A 2600 |
| 500 | 4,0 | 3,2 | 50 | 120 | 4/15/80 | LU5A 2700 |
| 500 | 4,4 | 3,5 | 30 | 120 | LU5A 3000 | |
| 530 | 4,2 | 3,5 | 30 | 126 | 2/10,5/70 | LU5A 2800 |
| 550 | 4,2 | 3,5 | 30 | 132 | 2/10,5/70 | LU5A 2900 |
