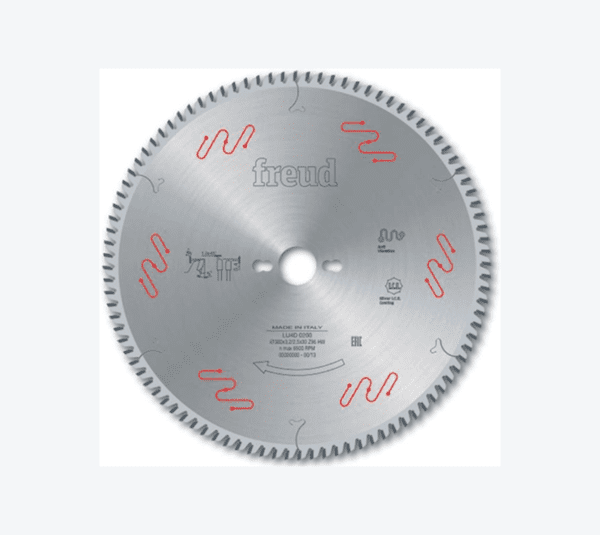

LU5D Krožne žage za rezanje barvnih kovin in plastike

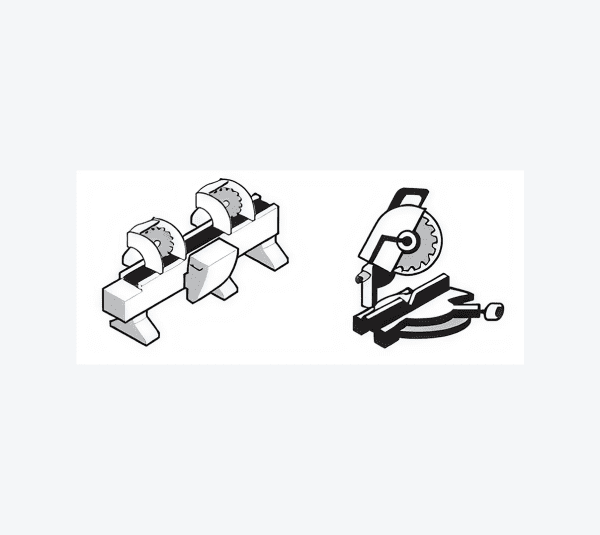

STROJI:
Dvoglave rezalne naprave in kapne žage.
MATERIALI:
Aluminij, baker, medenina, plastika in PVC.
NAMEN UPORABE:
Rezanje aluminija, barvnih kovin in plastičnih materialov.
TEHNIČNE INFORMACIJE:
Primerne za rezanje izvlečenih izdelkov in cevi s debelino do 3 mm. Priporočena uporaba na rezalnih strojih, kjer žaga sega nad obdelovanec. Primerno tudi za rezanje PVC profilov.

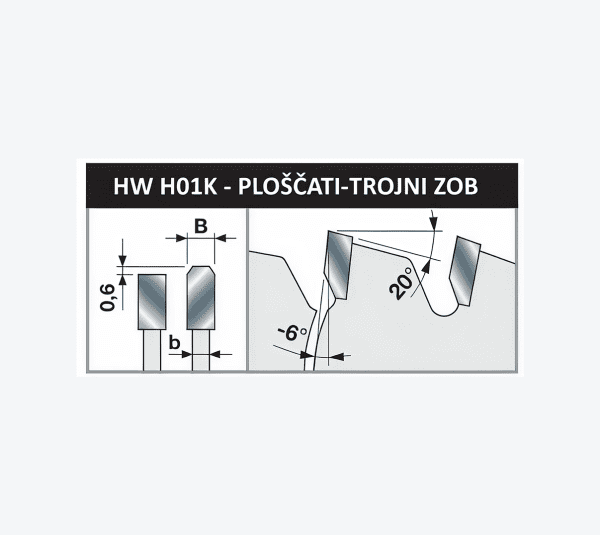

| D
mm |
B
mm |
b
mm |
d
mm |
Z
|
NL | ŠTEVILKA ARTIKLA
|
| 160 | 2,8 | 2,2 | 20 | 42 | LU5D 0100 | |
| 190 | 2,8 | 2,2 | 30 | 54 | LU5D 0200 | |
| 200 | 2,8 | 2,2 | 30 | 60 | LU5D 0300 | |
| 210 | 2,8 | 2,2 | 30 | 60 | LU5D 0400 | |
| 216 | 2,8 | 2,2 | 30 | 60 | LU5D 0500 | |
| 220 | 3,0 | 2,5 | 30 | 64 | FT02 | LU5D 0600 |
| 230 | 3,0 | 2,5 | 30 | 64 | LU5D 0700 | |
| 250 | 3,5 | 3,0 | 30 | 80 | FT02 | LU5D 0800 |
| 250 | 3,5 | 3,0 | 32 | 80 | 2/11/63 | LU5D 0900 |
| 250 | 3,5 | 3,0 | 40 | 80 | 2/9/55 + 4/12/64 | LU5D 1000 |
| 275 | 3,5 | 3,0 | 40 | 84 | 2/9/55 + 4/12/64 | LU5D 1100 |
| 300 | 3,5 | 3,0 | 30 | 96 | FT02 | LU5D 1200 |
| 300 | 3,5 | 3,0 | 32 | 96 | 2/11/63 | LU5D 1300 |
| 300 | 3,5 | 3,0 | 40 | 96 | 2/9/55 + 4/12/64 | LU5D 1400 |
| 330 | 3,5 | 3,0 | 30 | 104 | FT02 | LU5D 1500 |
| 330 | 3,5 | 3,0 | 32 | 104 | 2/11/63 | LU5D 1600 |
| 350 | 3,5 | 3,0 | 30 | 108 | FT02 | LU5D 1700 |
| 350 | 3,5 | 3,0 | 32 | 108 | 2/11/63 | LU5D 1800 |
| 350 | 3,5 | 3,0 | 40 | 108 | 2/9/55 + 4/12/64 | LU5D 1900 |
| 370 | 3,5 | 3,0 | 30 | 108 | LU5D 2000 | |
| 380 | 3,5 | 3,0 | 32 | 108 | 2/11/63 | LU5D 2200 |
| 400 | 3,5 | 3,0 | 30 | 120 | LU5D 2300 | |
| 400 | 3,5 | 3,0 | 32 | 120 | 2/11/63 | LU5D 2400 |
| 400 | 3,5 | 3,0 | 40 | 120 | 2/15/80 + 2/12/64 | LU5D 2500 |
| 400 | 3,5 | 3,0 | 50 | 120 | 4/15/80 | LU5D 2600 |
| 420 | 4,0 | 3,2 | 30 | 120 | 2/11/70 | LU5D 2700 |
| 420 | 4,0 | 3,2 | 40 | 120 | LU5D 2800 | |
| 450 | 4,0 | 3,2 | 30 | 128 | LU5D 2900 | |
| 500 | 4,0 | 3,2 | 32 | 140 | 2/11/63 | LU5D 3400 |
