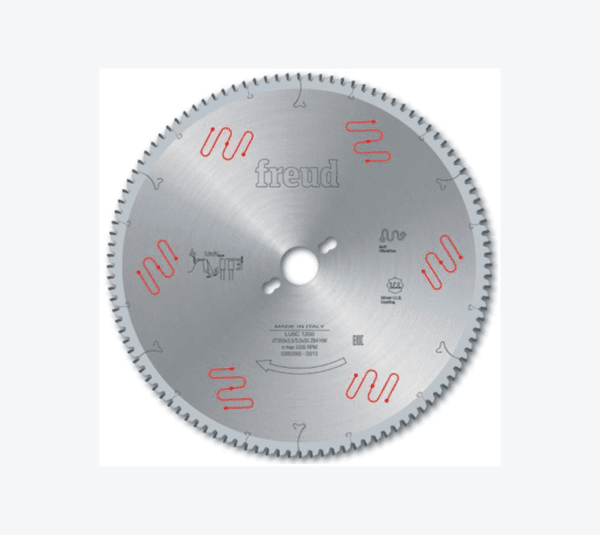

LU5C Krožne žage za rezanje barvnih kovin

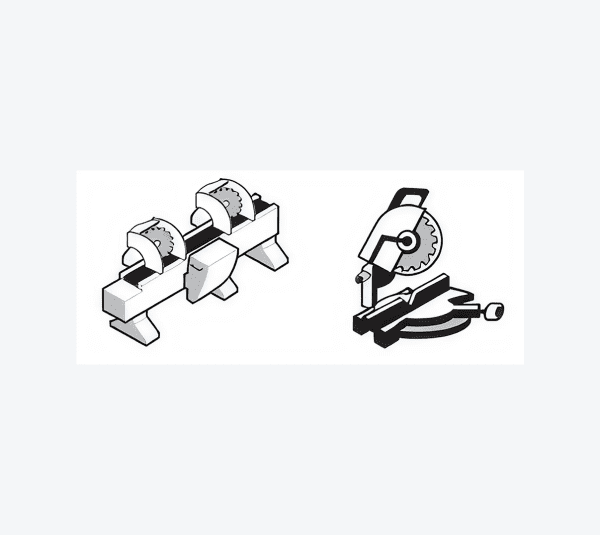

STROJI:
Dvoglave rezalne naprave in kapne žage.

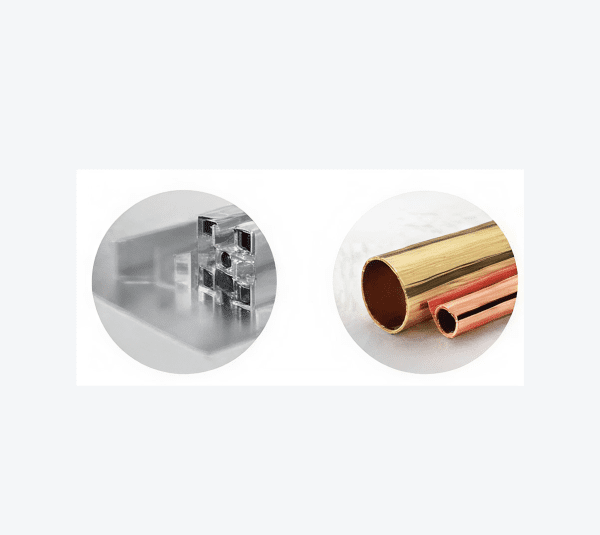

MATERIALI:
Aluminij, baker, medenina.
NAMEN UPORABE:
Rezanje aluminija in drugih barvnih kovin.

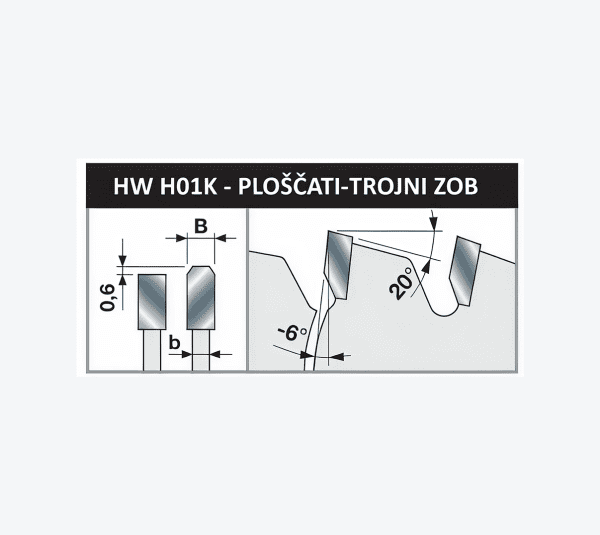

TEHNIČNE INFORMACIJE:
Primerne za rezanje trdih izdelkov s premerom več kot 3 mm. Priporočena uporaba na rezalnih strojih, kjer žaga sega nad obdelovanec.
| D
mm |
B
mm |
b
mm |
d
mm |
Z
|
NL | ŠTEVILKA ARTIKLA
|
| 180 | 2,8 | 2,2 | 20 | 42 | LU5C 0100 | |
| 180 | 2,8 | 2,2 | 30 | 42 | LU5C 0200 | |
| 200 | 2,8 | 2,2 | 30 | 48 | LU5C 0300 | |
| 250 | 3,5, | 3,0 | 30 | 54 | LU5C 0400 | |
| 275 | 3,5 | 3,0 | 40 | 60 | LU5C 0600 | |
| 300 | 3,5 | 3,0 | 30 | 72 | FT02 | LU5C 0700 |
| 300 | 3,5 | 3,0 | 32 | 72 | 2/11/63 | LU5C 0800 |
| 300 | 3,5 | 3,0 | 40 | 72 | 2/9/55 + 4/12/64 | LU5C 0900 |
| 330 | 3,5 | 3,0 | 30 | 80 | LU5C 1000 | |
| 350 | 3,5 | 3,0 | 30 | 84 | FT01 | LU5C 1200 |
| 350 | 3,5 | 3,0 | 32 | 84 | 2/11/63 | LU5C 1300 |
| 350 | 3,5 | 3,0 | 40 | 84 | 2/9/55 + 4/12/64 | LU5C 1400 |
| 370 | 3,5 | 3,0 | 30 | 90 | LU5C 1500 | |
| 370 | 3,5 | 3,0 | 50 | 90 | 4/15/80 | LU5C 1600 |
| 380 | 3,5 | 3,0 | 32 | 96 | 2/11/63 | LU5C 1700 |
| 400 | 3,5 | 3,0 | 30 | 96 | 2/11/70 | LU5C 1800 |
| 400 | 3,5 | 3,0 | 32 | 96 | 2/11/63 | LU5C 1900 |
| 400 | 3,5 | 3,0 | 40 | 96 | 2/12/64 + 2/15/80 | LU5C 2000 |
| 400 | 3,5 | 3,0 | 50 | 96 | 4/15/80 | LU5C 2100 |
| 420 | 4,0 | 3,2 | 30 | 96 | 2/11/70 | LU5C 2200 |
| 420 | 4,0 | 3,2 | 40 | 96 | LU5C 2300 | |
| 450 | 4,0 | 3,2 | 30 | 108 | LU5C 2400 | |
| 450 | 4,0 | 3,2 | 32 | 108 | 2/11/63 | LU5C 2500 |
| 450 | 4,0 | 3,2 | 40 | 108 | 2/12/64 + 2/15/80 | LU5C 2600 |
| 450 | 4,0 | 3,2 | 50 | 108 | 4/15/80 | LU5C 2700 |
| 500 | 4,0 | 3,2 | 30 | 120 | LU5C 2800 | |
| 500 | 4,0 | 3,2 | 32 | 120 | 2/11/63 | LU5C 2900 |
