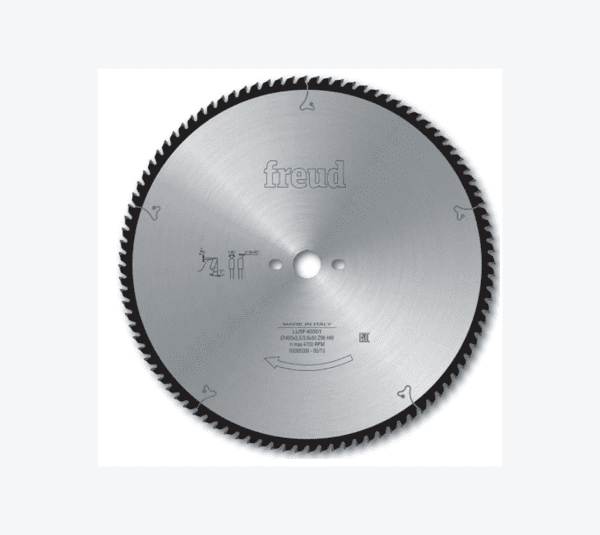

LU5F Krožne žage za rezanje barvnih kovin in plastike

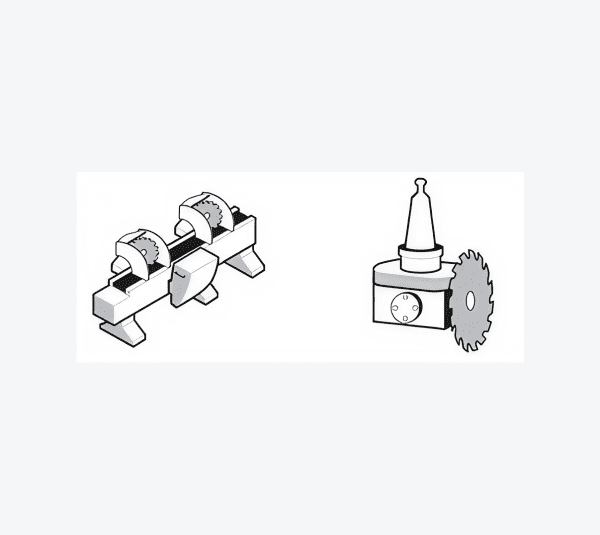

STROJI:
Dvoglave rezalne naprave in kapne žage.
MATERIALI:
Aluminij, baker in medenina.
NAMEN UPORABE:
Rezanje aluminija in drugih barvnih kovin.
TEHNIČNE INFORMACIJE:
Primerne za rezanje posebnih izvlečenih izdelkov, kot so cevi in profili z ultra tankimi stenami. Zmanjšana širina reza zagotavlja odličen zaključek brez zažiganja in omogoča uporabo žage na strojih z manjšo močjo.

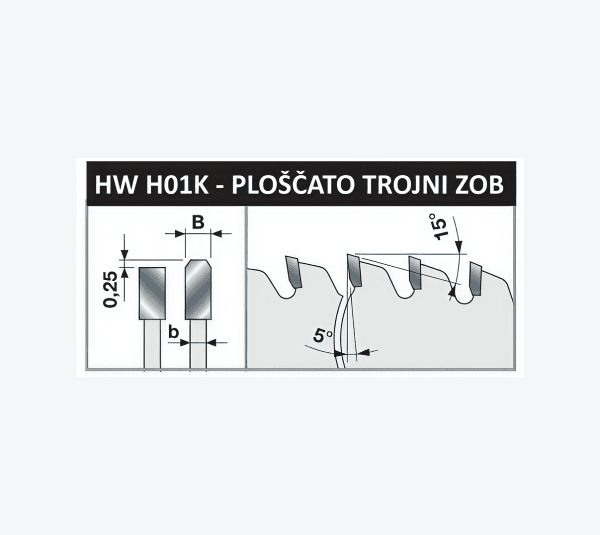

| D
mm |
B
mm |
b
mm |
d
mm |
Z
|
NL | ŠTEVILKA ARTIKLA
|
| 400 | 3,5 | 3,0 | 30 | 96 | 2/11/63 + 2/11/70 | LU5F40001 |
| 400 | 3,5 | 3,0 | 32 | 96 | 2/11/63 + 2/11/70 | LU5F40002 |
| 400 | 3,5 | 3,0 | 30 | 120 | 2/11/63 + 2/11/70 | LU5F40003 |
| 400 | 3,5 | 3,0 | 32 | 120 | 2/11/63 + 2/11/70 | LU5F40004 |
| 420 | 3,5 | 3,0 | 30 | 100 | 2/11/63 + 2/11/70 | LU5F42001 |
| 420 | 3,5 | 3,0 | 32 | 100 | 2/11/63 + 2/11/70 | LU5F42002 |
| 450 | 3,5 | 3,0 | 30 | 108 | 2/11/63 + 2/11/70 | LU5F45001 |
| 450 | 3,5 | 3,0 | 32 | 108 | 2/11/63 + 2/11/70 | LU5F45002 |
| 500 | 4,0 | 3,5 | 30 | 120 | 2/11/63 + 2/11/70 | LU5F50001 |
| 500 | 4,0 | 3,5 | 32 | 120 | 2/11/63 + 2/11/70 | LU5F50002 |
| 530 | 4,0 | 3,5 | 30 | 126 | 2/11/63 + 2/11/70 | LU5F53001 |
| 530 | 4,0 | 3,5 | 32 | 126 | 2/11/63 + 2/11/70 | LU5F53002 |
| 550 | 4,0 | 3,5 | 30 | 132 | 2/11/63 + 2/11/70 | LU5F55001 |
| 550 | 4,0 | 3,5 | 32 | 132 | 2/11/63 + 2/11/70 | LU5F55002 |
| 600 | 4,7 | 4,0 | 30 | 144 | 2/11/63 + 2/11/70 | LU5F60001 |
| 600 | 4,7 | 4,0 | 32 | 144 | 2/11/63 + 2/11/70 | LU5F60002 |
| 600 | 4,7 | 4,0 | 30 | 156 | 2/11/63 + 2/11/70 | LU5F60003 |
| 600 | 4,7 | 4,0 | 32 | 156 | 2/11/63 + 2/11/70 | LU |
