LU5B Krožne žage za rezanje barvnih kovin in plastike

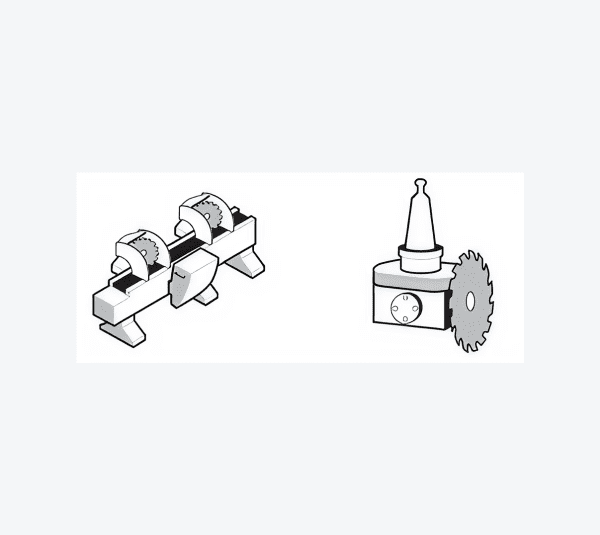

STROJI:
Dvoglave rezalne naprave in CNC rezalne enote.

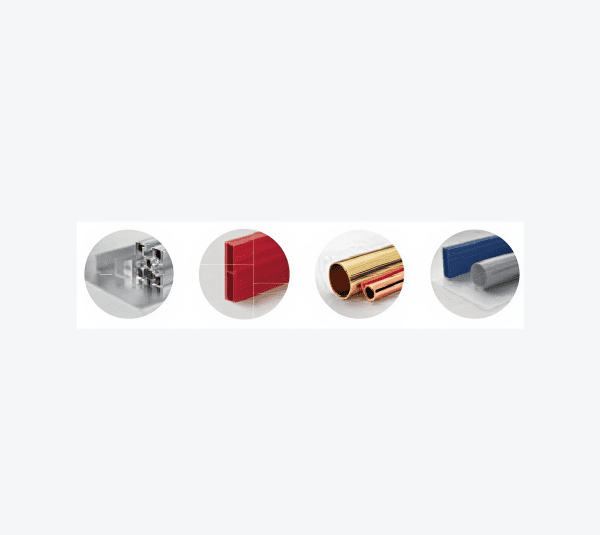

MATERIALI:
Aluminij, baker, medenina, plastika in PVC.
NAMEN UPORABE:
Rezanje aluminija, barvnih kovin in plastičnih materialov.
TEHNIČNE INFORMACIJE:
Primerne za rezanje izvlečenih izdelkov in cevi s debelino med 2 in 5 mm, ter polimernih plošč do 20 mm. Primerne tudi za rezanje PVC profilov.
| D
mm |
B
mm |
b
mm |
d
mm |
Z
|
NL | ŠTEVILKA ARTIKLA
|
| 200 | 2,8 | 2,2 | 30 | 64 | LU5B 0100 | |
| 250 | 3,5 | 3,0 | 30 | 80 | FT02 | LU5B 0200 |
| 250 | 3,5 | 3,0 | 32 | 80 | 2/11/63 | LU5B 0300 |
| 275 | 3,5 | 3,0 | 40 | 84 | 2/9/55 + 4/12/64 | LU5B 0400 |
| 300 | 3,5 | 3,0 | 30 | 88 | FT02 | LU5B 0500 |
| 300 | 3,5 | 3,0 | 32 | 88 | 2/11/63 | LU5B 0600 |
| 300 | 3,5 | 3,0 | 40 | 88 | 2/9/55 + 4/12/64 | LU5B 0700 |
| 300 | 3,5 | 3,0 | 30 | 96 | FT02 | LU5B 0800 |
| 300 | 3,5 | 3,0 | 32 | 96 | 2/11/63 | LU5B 0900 |
| 300 | 3,5 | 3,0 | 40 | 96 | 2/9/55 + 4/12/64 | LU5B 1000 |
| 330 | 3,5 | 3,0 | 30 | 104 | FT02 | LU5B 1100 |
| 330 | 3,5 | 3,0 | 32 | 104 | 2/11/63 | LU5B 1200 |
| 350 | 3,5 | 3,0 | 30 | 96 | FT02 | LU5B 1300 |
| 350 | 3,5 | 3,0 | 32 | 96 | 2/11/63 | LU5B 1400 |
| 350 | 3,5 | 3,0 | 40 | 96 | 2/9/55 + 4/12/64 | LU5B 1500 |
| 350 | 3,5 | 3,0 | 30 | 108 | FT02 | LU5B 1600 |
| 350 | 3,5 | 3,0 | 32 | 108 | 2/11/63 | LU5B 1700 |
| 350 | 3,5 | 3,0 | 40 | 108 | 2/9/55 + 4/12/64 | LU5B 1800 |
| 370 | 3,5 | 3,0 | 30 | 112 | LU5B 1900 | |
| 370 | 3,5 | 3,0 | 50 | 112 | 4/15/80 | LU5B 2000 |
| 380 | 3,5 | 3,0 | 32 | 112 | 2/11/63 | LU5B 2100 |
| 400 | 3,5 | 3,0 | 30 | 120 | 2/11/63 | LU5B 2200 |
| 400 | 3,5 | 3,0 | 32 | 120 | 2/11/63 | LU5B 2300 |
| 400 | 3,5 | 3,0 | 40 | 120 | 2/12/64 + 2/15/80 | LU5B 2400 |
| 400 | 3,5 | 3,0 | 50 | 120 | 4/15/80 | LU5B 2500 |
| 400 | 3,5 | 3,0 | 75 | 120 | 2/15/96 + 2/15/114 + 4/18/105 | LU5B 2275 |
| 420 | 3,5 | 3,0 | 30 | 120 | 2/11/70 | LU5B 2600 |
| 450 | 4,0 | 3,0 | 30 | 128 | LU5B 2700 | |
| 450 | 4,0 | 3,0 | 32 | 128 | 2/11/63 | LU5B 2800 |
| 500 | 4,0 | 3,2 | 30 | 140 | 2/10,5/70 | LU5B 3100 |
| 500 | 4,0 | 3,2 | 32 | 140 | 2/11/63 | LU5B 3200 |
| 550 | 4,2 | 3,5 | 30 | 148 | 2/11/63 | LU5B 3500 |
| 550 | 4,2 | 3,5 | 32 | 148 | 2/11/63 | LU5B 3800 |
| 600 | 4,8 | 4 | 30 | 156 | LU5B 3600 |
